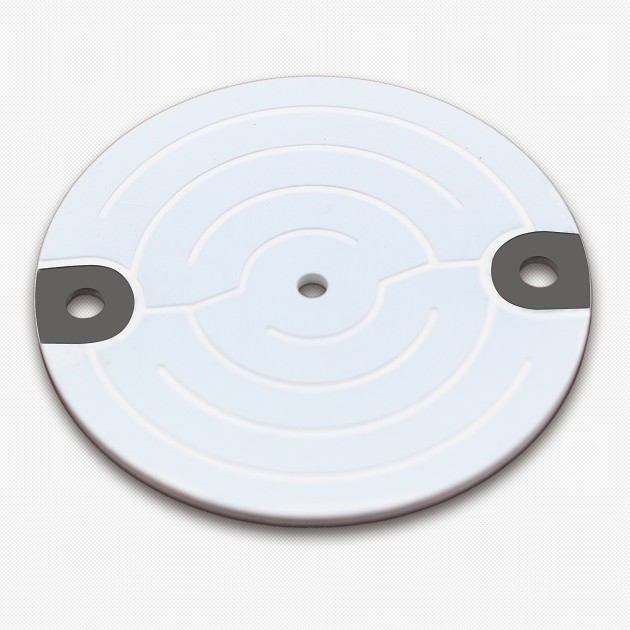

Insulator Pyrolytic Boron Nitride PBN/PG Heaters Disc

The PBN/PG ceramic heater combines three layers of ultra-high purity ceramics, PBN-PG-PBN to produce an advanced micro-ceramic
heating element system. PBN as an insulating substrate and PG as the resistive element.Both our PBN heater (Pyrolytic Boron
Nitride) and PG heater (Pyrolytic Graphite) are manufactured by high temperature CVD. These high performance elements exhibit
outstanding thermal properties in a ceramic heater, including high thermal conductivity and anisotropy.

Mechanically durable and thermally shock resistant, PBN/PG heaters are unaffected by vibration under most conditions and can be tailored to thermal gradients for specific requirements. With an ultra-fast response and low thermal mass, PBN/PG heaters demonstrate a power output of 35 watts/cm 2 (225 watts/in 2 ) and higher.

Size customization, please let me know the use temperature, current and voltage.

Applications

1. MOCVD heater
2. Metal heating
3.Metal evaporation heat source
4.Superconductor substrate heating
5. Sample analysis heating

Features

1.Micro-ceramic heating element has an operating temperature to = 1600°C.
2.High mechanical durability and dimensional stability.
3.Dimensionally compact. PBN layer provides electrical insulation.
4.Thermal gradients can be tailored to meet specific requirements.
5.Eliminate outgassing and contaminations.
6.High thermal shock resistance.
7.Chemically inert to almost all metals, liquids and gas.
8.Large variety of PG heater and PGN heater shapes available.

Material Properties
Grade	BN99	CABN	SIBN	ABN	SBN	ZSBN	AlBN
Compositions	BN＞99%	BN＞97.5%	BN+AL+SI	BN+Al2O3	BN+SiC	BN+ZrO2	BN+AlN
Density (g/cm³)	1.95-2.0	2.0-2.1	2.25-2.35	2.25-2.35	2.35-2.50	2.9-3.0	2.5-2.6
25℃ Resistivity (Ω·cm)	>10¹⁴	>10₁₃	>10₁₃	>10₁₂	>10₁₂	>10₁₂	>10₁₂
Compressive Strength (Mpa)	55	70	148	150	175	200	185
Thermal Conductivity (W/mK)	35	32	35	35	40	30	55

Max Service Temp. (℃)
Oxygen	900	900	1000	1000	1000	1000	1000
Inert Gas	2100	2100	1700	1700	1700	1800	1800
Longstanding In High Vacuum	1900	2000	1700	1700	1700	1800	1800
